Introduction to AD-USBISP V03.6 development equipment
* ISP (In System Programming ) development equipment for AVR
- It is possible to download and test any user written program to the internal program memory of AVR
(Supports Flash Read/Write)
- Download is possible to any 8 bit AVR micro controller that supports ISP of ATMEGA2561, ATMega128,
ATMega32, ATMega16 and ATMega8 etc (3.3V/5V Compatible)
- This device can be used with 8051compatible 89Sseries microcontrollers like AT89S52 and AT89S51
* Supports USB to Serial (TTL Level) function and basic connector
(But downloading for USBISP cannot be used simultaneously with 6 pin connector)
* Supported S/W (Various lectures available at http://www.newtc.co.kr )
- Automatic downloading after compiling by ICC-AVR
- CodeVision C Compiler
Support V1.24.6 Commercial Release and above (V1.24.7F is not supported)
Stable operation possible from V1.25x and above
- Support latest AVR STUDIO V4.16, 4.15, 4.14, 4.13 SP1, SP2, 4.12 etc
- Support latest ATMEL STUDIO V7.0, 6.0, 5.0
- Support Arduino Schech program upload with ISP
Features
USB-ISP V03.5 LAUNCH !!!
1. No limitation on the size of flash download (ex, can support 256K))
2. Support internal EEPROM read and write.(INTEL,HEX format)
3. Can support all 8 bit AVR series, 89S51, 89S52 (use AVR studio)
4. Support all the recent versions such as AVR Studio V4.18 ~ 4.13
5. Recommend to use V1.25 above when using Code Vision AVR.
6. USB to UART(TTL,CMOS Level) installed and output is made through 4 pin connecter .
(USB to UART and USBISP connector cannot be used at the same time, and do not connect both connector in your target board at the same time.)
7. Variety of download speed (low speed ~high speed)
8. LED signal indicating current status is clearly changed to 5 mode.
9. New function to insert USB power socket into TARGET board is available (recommend to use only when max current is below 100mA.

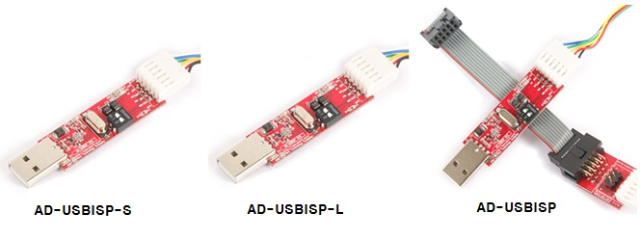

◈ AD-USBISP V03.6
◈ AD-USBISP V03.6
◈ AD-USBISP-L(lite) V03.6
◈ AD-USBISP-S(Special) V03.6
