Introduction to AM-TL8 (LED output module)

- 8EA LED outputmodule
- Can checkoutput of the port by LED. LED will be ON when corresponding port output is 1 and OFF when port output is 0.
- When using MCU such as AVR,corresponding port should be set to output
- You can study port controlling easily if you practice to ON/OFF with AM-TL8

Pinnumber of 10 pin box header

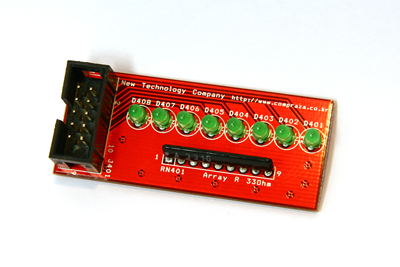

Picture of AM-TL8 (LED output module)
