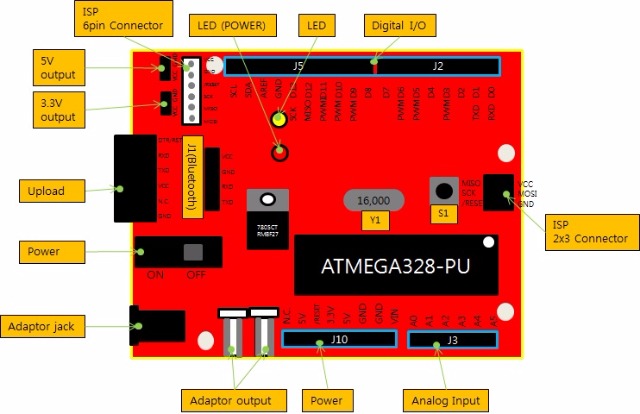

Introduction to DIP type assembled module for DM-USTYLE

◆ Arduino At Heart.

   Using UNO bootloader of embedded ATMEGA328P-PU

◆ Embedded flash, ROM, RAM, internal A.D converter at ATmega328P-PU

◆ Using 16MHz crystal for retaining stability.

◆ Using 12V external power, and internal 5V,3.3V power

◆ Assisting your development by 1x6 and 2x3 ISP connector.

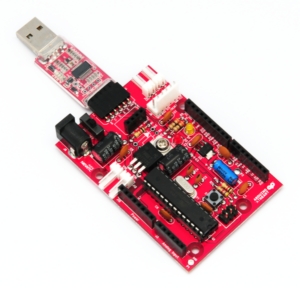

◆ Available software upload via sketch application using 1x6 USB to Serial uploader.

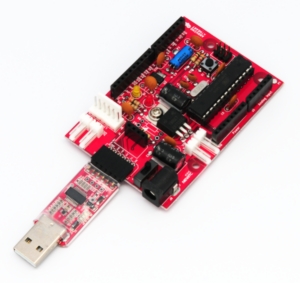

◆ Gains 5V external power by using DM-USB2SERIAL sketch uploader.

◆ Available power supplying to extension board by 3.3V, 5V, 12V output.

◆ Available Bluetooth® (HC-06) compatible connector.

-TTL(5V) Level : 4-pin connector

◆ Observing voltage transition by potentiometer.

◆ Supports connection with additional extension boards via extension

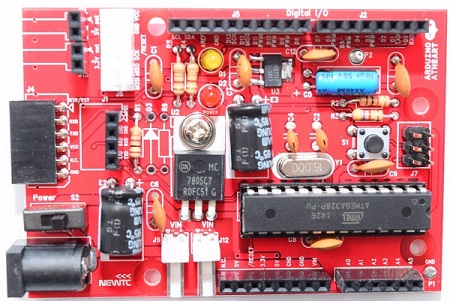

                                     DM-USTYLE(TOP)

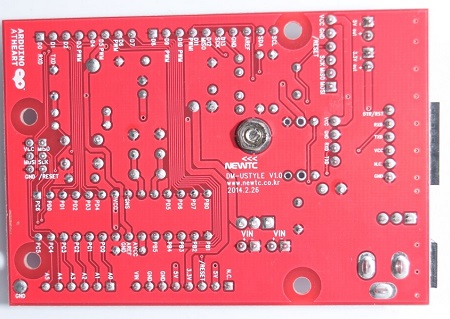

                                              DM-USTYLE(BOTTOM)

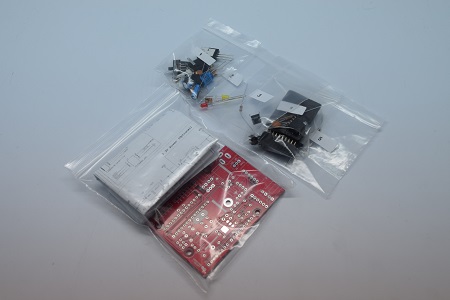

                                                 DM-USTYLE-DIY

 Please reference to manual

Using the DM-USTYLE V1.0 (NEWTC Prototyping Board  (Assembled version))

Program upload
Program can be written using the sketch software of  , and can upload the software automatically
if you click program compile & upload menu.

If you use this board just as AVR board, there are various compilers available like ICC AVR, CodeVision AVR, IAR, WINAVR etc. The compiled output generated by the compiler can be downloaded using the ISP. The ISP feature is supported in the Compiler tool. Program can be downloaded using the AD-USBISP (USB type STK500) and AD-ISPPRO (parallel port type STK200/300)

For detailed information please refer the lectures posted in our webpage (http://www.newtc-en.com)

Connecting to USBISP (AVR ISP)
