Introduction to AD-USBSERIAL ( USB TO SERIAL Conversion board)

* USB TO SERIAL Conversion board
* Both TTL Level (5V), RS-232C Level (±12V) signals supported
- TTL Level (3.3V, 5V) signal output is through the 5045-4 connector (MCU, directly used from logic)
- RS232C Level (±12V) signal output is through the 5267-3 connector and 9 pin D-SUB
* Serial communication control signals available (After removing loopback Resistance)
- The default setting contains the loopback resistance, so only 3 pins namely RXD, TXD and GND is required
for communication
- RI / DTR / CTS / RTS / DSR / DCD available for use in handshake mode
* USB 5V power available (If UART 4 pin connector is used)
* ON/OFF control of GPIO 4 pin possible (Example provided for Windows programming)

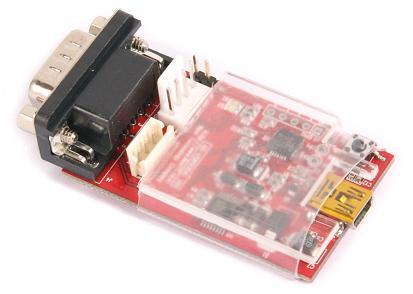

- Picture of USB TO SERIAL Conversion board AD-USBSERIAL V01

AD-USBSERIAL V01 (USB TO SERIAL Conversion board) Hareware






- Block diagram





- To use Flow control (Handshakemode), the loopback resistance should be removed as shown in the picture below.

How to Use Software

- Installation of USB driver




- Download AD-USBSERIAL driver available at data room in NEWTC website to install.
Website: http://www.newtc.co.kr (Data Room)

- If you connect AD-USBSERIAL to USB port on computer, you can search the device. N.T.C USB Serial Port will be found in port device in systemhardwaredevice administrator in my computer as show in above figure.
The result here is searched to be COM6, but ensure to check before using AD-USBSERIAL because the search result can be differ depending upon each computer or connected USB port.




- Using
You can use this module if you connect to port as verified above after running terminal program.





- If you use creating PC application software, write or read data with COM port as set above.
