Introduction of AM-CS2P

• This is a stepping motor driving board for line-tracer and drives 2 stepping motors.
• In respect of software, this lets the signals of A, /A, B and /B go through and control.
• If connecting 10Pin Cable with 12V power supply connector, you can control carrying current capacity in the motor. (variable resistance is used).
• Outer dimension: 63.3 X 50.6 mm

AM-CS2P stepping motor driving module H/W

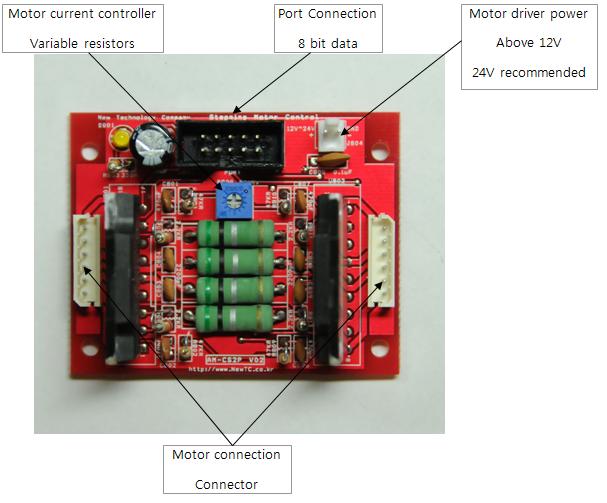

Composition diagram of H/W





Connecting connector

PIN No. of port connecting connector J801

Using driving module of AM-CS2P stepping motor (related with S/W)

- How to drive stepping motor

You must understand the basic structure and operating method of stepping motor and make the phase in respect of hardware or software in order to drive stepping motor.
For the basic structure, operating method and software implementing method, please see “lecture on linetracer-2 motor driving part” available at our website.
