Renesas' RL78 microcontroller training kit is to learn the RL78 / G13 series.

1. Description1. Description

- Renesas RL78 / G13 microcontrollers are learning kits.

- It inside a plastic bag for easy storage.

- Contains a practical textbook for beginners convenient to education.

- Renesas Aliance Partner's educational products and exclusive design house in NEWTC will find technical support.

2. Specifications

A. In that E1 is included in a program to a USB flash programmer and the RL78 programming / debugging equipment.

B. serial port of TTL Level are integrated on board. (It can be changed according to a CMOS level to the global power supply of the operating voltage of the module and the board)

C. Communication USB to Serial (UART) included the board.

D. RL78 development boards and I / O board is connected to the box straight 2.54mm 10-pin header.

E. Korean Language RL78 included that allows you to quickly perform development.

F. All individual modules and boards provides each product Korean manual.

G. DC line is built robot and line tracer tracer body can exercise control

3. Model photo (including derivative models)

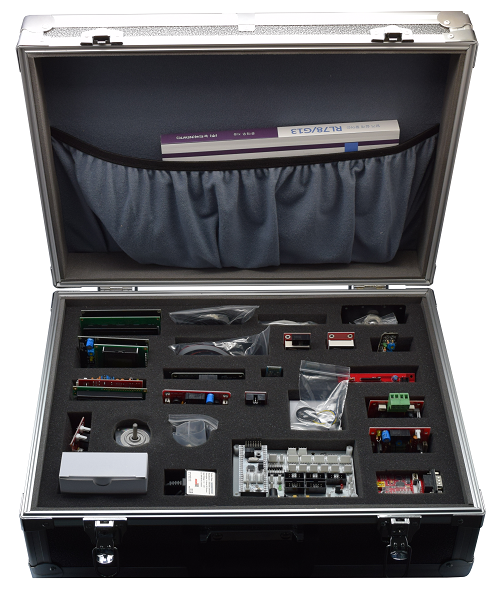

A. KD-RL78G13-PRO

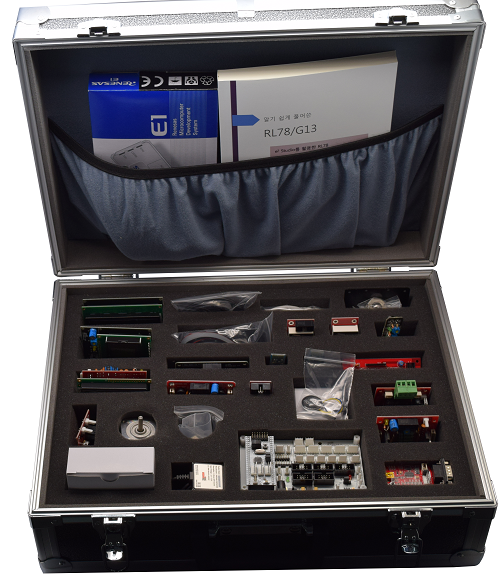

B. KD-RL78G13-PRO-E1 (KD-RL78G13-PRO + Renesas E1)

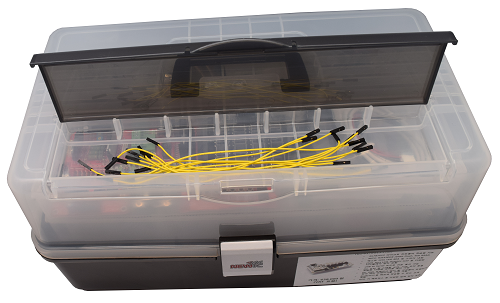

C. 1-pin (female-female) cable Photo

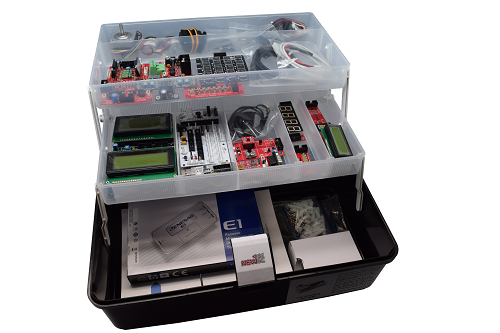

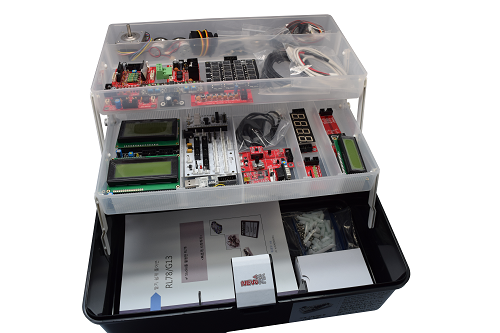

D. KD-RL78G13-PRO-AL



E. KD-RL78G13-PRO-AL-E1

1. Specifications

A. MCU part

One). RL78 / G13 Development Board 2

2). 12V DC / 1000mA (1A) Adapter

3). 12V DC -> 5V / 3.3V DC rectifier built

4). Built-in power switch

5). Hallym wafer on the main board LW0640-02 compliant external power input connector built in [12V + GND / 5V + GND]

B. I / O ports

1) General I / O ports in the 10-pin box connector is mounted search (P1 [0 ~ 7], P2 [0 ~ 7], P0 + P7 [P00 ~ P01, P70 ~ P75], the timer output [TO0 ~ TO7 ], timer input [TI0 ~ TI7])

2) implement all the special features of pins RL78 / G13 4-pin / 5-pin interface

C. Memory

1) RL78 / G13: R5F100GE [64kb Flash, 4kb RAM]

D. Communication and other specifications

1). UART (TTL level can be attached to the case is set as a global power 3.3V operation to the motherboard CMOS level)

2). E1 interface connector (using the flash programmer to program this interface can be downloaded)

3). Built-in reset switch

4). RL78 / G13 is operable with internal oscillator 32MHz. Compensation for high-speed clock and external clock interface to a variety of exercises and external 20MHz crystal oscillator using 32.768kHz slow.

2. Accessories

A. 2x5 box header cable 6

B. Power Supply Adapter for: 12VDC / 1000mA

C. 2 2-pin DC power cable (Hallym CHW0640-02P)

D. 4 pin 1: 4 1 cable (SE-4P4P-D)

E. 1 pin (female-female) cable 12

3. The products included

A. KD-RL78G13-PRO

1) Module x 1pcs

2) The board x 1pcs

3) ADC-DEV-P x 1pcs

4) AD-GPS-T x 1pcs

5) AD-USBSERIAL x 1pcs

6) AM-CD2L x 1pcs

7) AM-CS2P x 1pcs

8) AM-CSV x 1pcs

9) AM-DC2-2D x 1pcs

10) AM-FND1 x 1pcs

11) AM-FND4 x 1pcs

12) AM-IRS4D x 1pcs

13) AM-SLCD-216 x 1pcs

14) AM-TL8 x 1pcs

15) AM-TS8 x 1pcs

16) PM-BT-UART-M x 1pcs

17) PM-BT-UART-S x 1pcs

18) PM-KEYM-4X4 x 1pcs

19) PM-LCD-G x 1pcs

20) PM-LCD-T-420G x 1pcs

21) RD-FLASHLOADER x 1pcs

22) SE-2P2P x 1pcs

23) SE-2X520 x 3pcs (cable bundle 2 x 3 pcs = 6 total)

24) SE-4P4P-D x 1pcs

25) SE-A410 x 1pcs

26) SE-BC13 x 1pcs

27) SE-DCB x 1pcs

28) SE-DM x 1pcs

29) x1 two wheels for SE-DM (2 x 1 A bundle of two wheels = 2 total)

30) SE-MIN1 x 2pcs (cable bundle 6 x 2 pcs. = 12 total)

31) SE-PW12V x 1pcs

32) SE-SM243 x 1pcs

33) SE-SPEAKER x 1pcs

34) SE-USBMINIB  x 1pcs

35) SE-USBPOWER x 1pcs

36) Plastic Bags

37) provides, which includes teaching and example source code and manuals CD

38) set supporter

B. KD-RL78G13-PRO-E1

1) All of the components of KD-RL78G13-PRO

2) Renesas E1

◈ Program Download

And using the E1 interface connector of the RL78 / G13 microcontrollers can operate by downloading a program created on a PC. Compilers are KPIT GNURL78, IAR compiler, and the Renesas CC-RL, integrated development environments (IDE) include IAR EWRL78, e2 Studio, Cubesuite +.

Download the program and can be downloaded using a Renesas E1 or flash programmer.

And more information, please visit the courses we offer on our website (http://www.newtc.co.kr).
