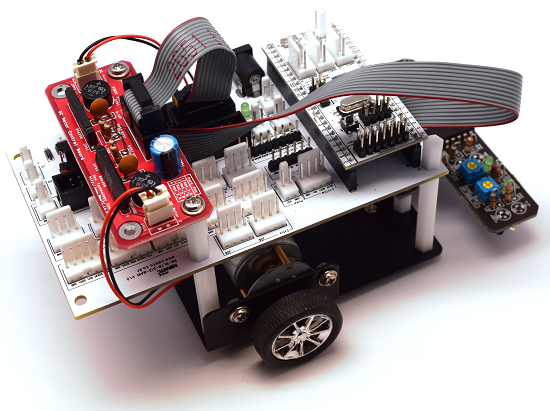

And Renesas RL78 / G13 Line tracer kit developed by a DC motor created using the MCU.

And RL78 / G13 MCU can design a system without a complicated circuit configurations, built-in memory (ROM) and random access memory (RAM) and the internal AD Converter built into the device.

And a control board, disconnect the pin all the special features of the RL78 / G13 48p (R5F100GE), GPIO pins to connect a regular 10-pin header box is designed to be used when you develop other products.

This product has been made easy for everyone to try to see the programming tracer lines, including the lines would like to help primary source of tracer behavior, schematics, so you can easily study the course RL78 / G13 MCU development environment.

◈ Specifications

And MCU: R5F100GE (48-pin TQFP type, 64k Flash)

And a clock: 32MHz on-chip oscillator, 20MHz external crystal, 32.768kHz crystal with low speed

And size: 120 * 110 * 60

And Power: 12V 1A DC

◈ LED, switches, program download port

And switch (1EA) built

And LED (5EA) built

E1 and 14-pin connector built jack

And Reset S / W built

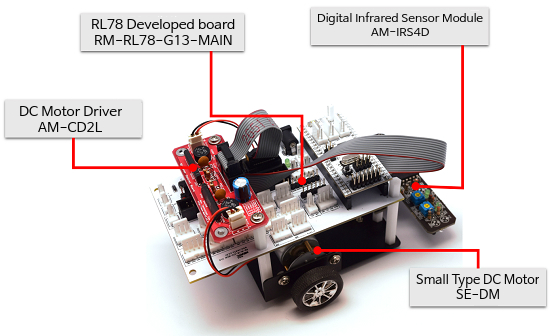

◈ KR-RL78G13-LT-DC Development Kit Contents

And RL78 development boards and components

And digital type of infrared sensor board

And aluminum body (for DC Line Tracer)

DC motors and SE-DM 2EA, DC motor driver (SE-DM) built

And Ball Casters (13mm grade)

And plastic wheels

Organization and fixtures (supporter, screws, nuts, etc.)

And current connector (sensor board connectors, motor connector (2EA))

And it includes one of the adapter DC 12V 1A output for the test.
