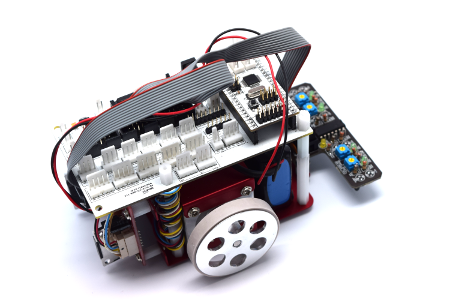

And Renesas RL78 / G13 Line tracer kit developed by a stepping motor created using the MCU.

And RL78 / G13 MCU can design a system without a complicated circuit configurations, built-in memory (ROM) and random access memory (RAM) and the internal AD Converter built into the device.

And a control board, disconnect the pin all the special features of the RL78 / G13 48p (R5F100GE), GPIO pins to connect a regular 10-pin header box is designed to be used when you develop other products.

This product has been made easy for everyone to try to see the programming tracer lines, including the lines would like to help primary source of tracer behavior, schematics, so you can easily study the course RL78 / G13 MCU development environment.

◈ Specifications

MCU: R5F100GE (48-pin TQFP type, 64k Flash)

A clock: 32MHz on-chip oscillator, 20MHz external crystal, 32.768kHz crystal with low speed

Size: 120 * 110 * 60

Power: 12V 1A DC

◈ LED, switches, program download port

Switch (1EA) built

LED (5EA) built

E1 and 14-pin connector built jack

Reset S / W built

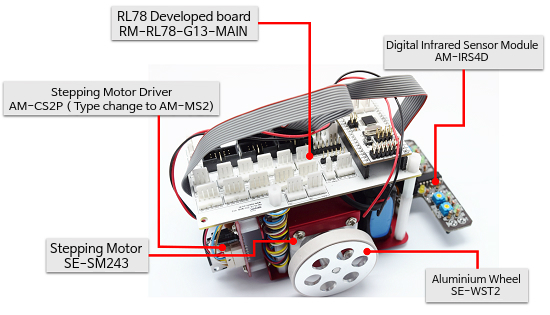

◈ KR-RL78G13-LT-STP Development Kit Contents

RL78 development boards and components

Digital type of infrared sensor board

Aluminum body (for stepping line tracer)

A stepping motor 2EA, stepping motor controller (AM-CS2P) (can be changed to AM-MS2) built

Ball Caster (13mm grade)

Aluminum wheels and version 2. (which is a special structure of the wheels does not fall well without falling from the motor, also silicon)

Organization and fixtures (supporter, screws, nuts, etc.)

Current connector (sensor board connectors, motor connector (2EA))

It includes one of the adapter DC 12V 1A output for the test.

12V 1A including battery and battery charger.

1. Adjust the sensitivity of the sensor by infrared sensors.

    At this time, the hidden hand after the bottom of the sensor, the sensor that adjusts to light up after turning the variable resistor,

    Turn back, turn in the opposite direction up to the point just before the fire goes out.

    When the well was to release the attached check whether the lights turned on and off with.

2. As above all the sensors to test the sensors.

3. Driving, bright floor with black insulation tape on the line (white paper).
